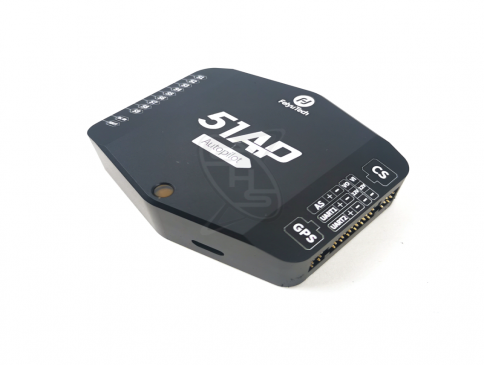

FEIYUTECH FY-51AP Flight Controller

51AP

Aircraft Model Flight Control System

- Feature-rich
- Anti-knock
- Superposition
- ARM chip
- Adaptive algorithms
- GCS

51AP flight control system, as the replacement of 41AP, to use new generation ARM processor. Compared with the previous generation of processor, 51AP use efficient floating point algorithm. It can bring a very good driving experience whether it is automatic driving or manual control. 51AP supports 64 flight points and 7 flight modes, which can be freely switched through remote control or GCS software.

OSD video superposition feature
To inlay independent OSD video superposition module, which can show flight parameters.

Efficient floating point algorithm
To use the new generation ARM processor and be better to flight.

Simplify the complex, intelligent flight control
51AP is easy to be operated, it has seven flight modes and can be switched to press one button.

- Airline flight
- Stabilization flight
- Indicating flight
- Aerobatics
- Remote control flight
- Automatic return
- Fixed height and direction

Indicating route, be safe and convenient
51AP has a rich routing function and can be designed 64 flight point. User only need to plan flight line and choose proper flight height from GCS and then it will fly according to instruction.

Apply to variety of aircraft
51AP is compatible with different kinds of aircraft such as: Common, V tail, Flying wing, etc. It can satisfy the different user and realizes user's flying dreams, and who enjoys the passion of sensitive control and speed at any time.

A variety of interface
Using D-connector cable, which is convenient for user to use. It has 1 SBUS interface, 8 servos output and 1 video output interface.

Triple protection
51AP supports non-signal return, one-buttone return, electronic fence and other safety protection functions, which avoids the loss of aircraft or other dangerous situations.

GCS software, manage freely
Through GCS ground software, flight equipment can be easily managed, with clear status and real-time control. It can adjust parameters and upgrade, and install flight guides online.
