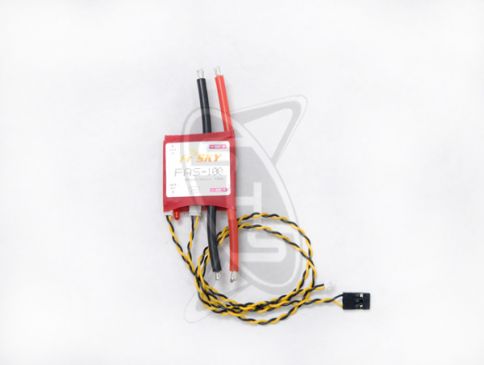

FrSky FAS-100 Ampere Sensor (100A)

SGD 30.30

The FrSky FAS-100 Ampere Sensor can measure Current (A), Power Consumption (mAH) and Power (W) when connected between a Battery and ESC. Current (A) and Power (W) will be displayed on the FrSky FLD-02, while Current (A) and Power Consumption (mAH) will be displayed on the FrSky DHT-U.

QTY:
Share this product
The FrSky FAS-100 Ampere Sensorcan measure Current (A), Power Consumption (mAH) and Power (W) when connected between a Battery and ESC. Current (A) and Power (W) will be displayed on the FrSky FLD-02, while Current (A) and Power Consumption (mAH) will be displayed on the FrSky DHT-U. The FAS-100 reports Power and Power Consumption without an external voltage sensor and, in addition, can be chained together to report individual cell voltages by using the FrSky FLVS-01.

Specifications:
  • Model: FAS-100
  • Dimension: 38x30x10mm
  • Weight: 24g
  • Measurement range: 0~100A
  • Maximum safe current: 100A
  • Sensor current consumption: 33mA
  • Update Rate: ≥1Hz
About FrSky Two-Way Telemetry System:

The two-way telemetry system developed by FrSky provides not only allows normal RC control but also a true telemetry system to feedback data live back to the transmitter. This new capability allows for the real time display and data logging of informations such as altitude, GPS location, battery levels, speed, etc. to the operator.

By attaching FrSky DHT-U module to any PPM output transmitter with a module bay, you can upgrade the radio immediately to a 2.4GHz system with telemetry functions!
