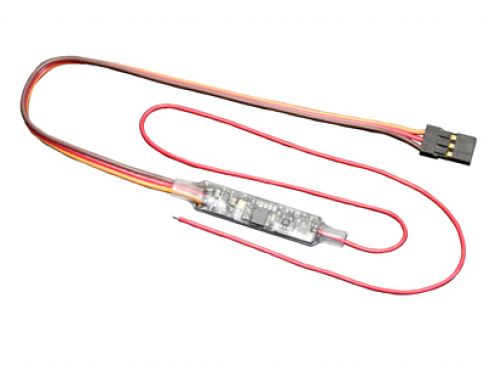

JR TLS3-ROT DMSS Rotation Sensor (RPM)
SGD 49.30
JR TLS3-ROT is a new DMSS rotation sensor with improved accuracy that measures the brushless motor's rpm utilizing pulse signals. Only one signal wire needs be connected to any of the brushless motor leads, no need for an extra sensor unit. It is designed for use with JR XG11, XG8, XG6 and 11X Zero DMSS radios.
JR TLS3-ROT is a new DMSS rotation sensor with improved accuracy that measures the brushless motor's rpm utilizing pulse signals. Only one signal wire needs be connected to any of the brushless motor leads, no need for an extra sensor unit. It is designed for use with JR XG11, XG8, XG6 and 11X Zero DMSS radios.
Features:
- Pulse sensing rotation sensor which takes pulse signal data directly from the brushless motor.
- Using this direct method provides accurate data and easy installation.
- Only one signal wire needs be connected to any of the brushless motor leads. There is no need for an extra sensor unit.
- The pulse signal can be visibly checked referring to the LED on the unit.
Specifications:
- Detection System: Motor pulse sensing system
- Detection range: 1000rpm-50,000rpm
- Rated voltage: 4.8V
- Operating Voltage: 4.0V - 8.5V
- Conversion compatibility : XG11/XG8/XG6/11X ZERO
| Weight: | 0.0800 |
