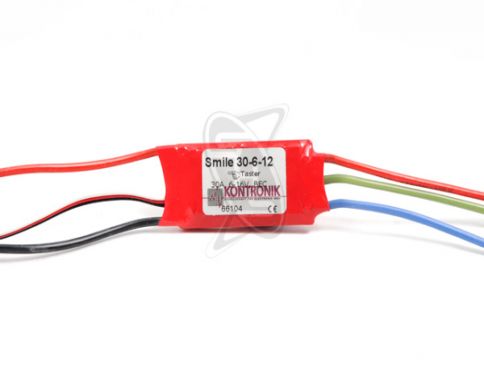

Kontronik Smile 30-6-12 Brushless Esc

SGD 211.80

Kontronik Smile 30-6-12 Brushless Esc

QTY:
Share this product
The Kontronik Smile speed controls are speed controls for brushless motors. They work without sensors in the motor and have full part load capability. They are very sensitive and have a tender and yet very fast start up. The built-in RPM control optimizes the usage with helicopters and the new mode programming helps essentially to program all the multiple parameters (as EMF-brake strength or undervoltage cut off) of the Smile speed controls.
The Smile speed controls utilize a mode programming. In most cases it makes it unnecessary to program the individual properties itself (as the EMF-brake or the undervoltage cut off).

• Very small and very light weight
• Sensorless, no sensor signals from the motor are required
• Mode programming
• Auto-Programming-Mode APM
• Glider-Mode
• Motor-Plane- / Boot-Mode
• Helicopter-Mode, Competition-Mode, Car-Mode
• Reverse Motor Rotation
• Part load capability
• Active RPM control possible
• Adjusting control by LED or audible signal
• Start up protection at power up
• Blocked motor protection, overtemperature protection
• Arming switch possible
• EMF-brake with variable brake rate, can be disabled
• Automatic undervoltage cut off at 0.8 V/cell
• Over current cut off
• RPM limiting
• 100% surface mount technology
• Very sensitive control characteristic
• Digital microprocessor control, therefore no thermal drift
• Highly flexible, heat-resistant cables
• CE tested and Made in Germany

Specifications:

 6-12 Ni-Cd cells, 6-16 V
 2 A BEC for 4 servos up to 12 cells
 30 A continues current, 40 A for 15 sec
 17 g / 33 g without / with cable - 49 x 28 x 7.5 mm
Weight: 0.1000
