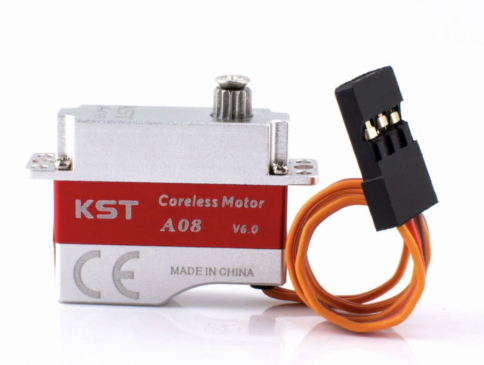

KST A08 V6 Wing Servo (1.4-2.8KG)
Features
- Compact and lightweight design
- Excellent torque and speed
- Designed for high-performance RC Gliders
- Excellent heat dissipation
A08 V6.0 Coreless Metal Gear HV Servo Glider DLG
Specification
- Working Frequency: 1520us/20KHz or 333Hz
- Default Travel Angle: ±60° = 120° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Yes
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 23.5*8.0*19.0±0.2mm
- Weight: 7g±10%
- Rated Voltage: DC7.4V
- Voltage Range: DC3.8V-8.4V
Programing box/USB link compatible
Features
- Compact and lightweight design
- Excellent torque and speed
- Designed for high-performance RC Gliders
- Excellent heat dissipation
Torque
- 14N.cm@3.8V - 1.4kg.cm@3.8V- 22N.cm@6.0V - 2.2kg.cm@6.0V
- 28N.cm@7.4V - 2.8kg.cm@7.4V
- 32N.cm@8.4V - 3.2kg.cm@8.4V
Speed
- 0.20sec/60°@3.8V- 0.13sec/60°@6.0V
- 0.10sec/60°@7.4V
- 0.09sec/60°@8.4V
Package Contents
1 * A08 V6.0 Coreless Metal Gear HV Servo Glider DLG
| Weight: | 0.0200 |
