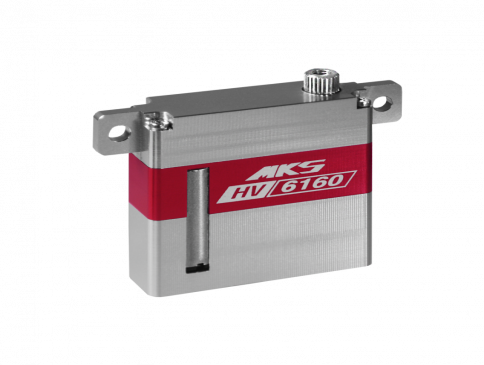

MKS HV6160 Metal Gear High Voltage Digital Wing Servo

MKS HV6160 SERVO

MKS HV6160 Metal Gear High Voltage Digital Wing Servo

Ideal for thin wings the HV6160 is constructed using an aluminum case and thin profile making it incredibly strong. Weighing in at only 30.7 grams this servo boasts an impressive 258.3oz-in of torque!

Features:
- Uses Pulse Width Control (PWM)
- High quality coreless motor
- Dual ball bearing
- Full metal gears

Specifications:
Voltage: 4.0-8.4V DC
Torque:
4.8V: 11.7 Kg/cm (162.4 oz/in)
6V: 14.5 Kg/cm (201.3 oz/in)
7.4V: 17.0 Kg/cm (236.1 oz/in)
8.4V: 18.6 Kg/cm (258.3 oz/in)
Speed:
4.8V: 0.230 sec/60°
6V: 0.182 sec/60°
7.4V: 0.147 sec/60°
8.4V: 0.133 sec/60°
Dimensions: 33x10x35.2mm
Weight: 30.7g
Working Frequency: 1520s / 333Hz
Dead Band: 0.001ms (Default)
Temperature Range: -10 to + 60 Degree C
