PILOT 11337 Calamansi Basic (2508mm)

PILOT 11337 Calamansi Basic (2508mm)

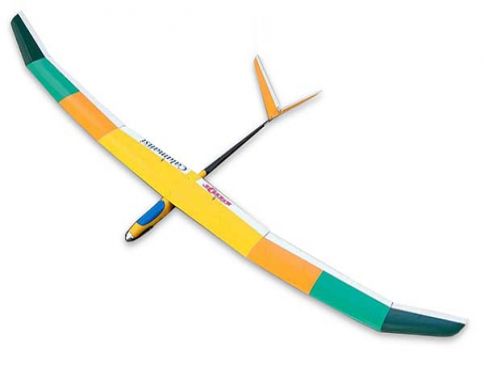

Calamansi is a large motor glider for intermediate users. It is an attractive 2.5m wing span class with outstanding flight performance and maneuverability.

Through long-term test flights, it has demonstrated maneuverability and maneuverability that you wouldn't expect from a large aircraft. The main wing can also be divided into three parts even after completion.

The highly visible coloring is effective even in long-distance competitions. The fiberglass pod has plenty of room, making it possible to mount a variety of motors.

The center dihedral angle and large wing tips make it easier to handle small turns.

The ribbed full balsa plank main wing faithfully reproduces the studied airfoil shape. The well-balanced tail has little resistance and can be flown over a wide range for thermal hunting. The 3-split main wing makes it compact and easy to carry.

Calamansi is available in three types: a DX type that comes with a motor and folding propeller set, a basic type that includes only the aircraft, and a PnP aircraft that is equipped with a mechanism.

Main contents of the set
・Semi-finished fuselage (glass pod, carbon tail boom)
・A film attached main tail (some S film)
・Plastic canopy
・Linkage parts　
・Control horn
・Color sticker　
・Assembly instructions

Main separately prepared items

・Airplane radio transmitter
・Small receiver
・Servo Tahmazo TS-D1116MG (48909) 4 pieces
　　　　　Tahmazo TS-D1132MG (48907) 2 pieces
・Brushless motor Tahmazo ER-221912d (48855)
・Folding propeller blade Tahmazo 10×6/8 (48690)
・Spinner hub set Tahmazo AT30/8C3.18SM(48729)
・Speed controller Tahmazo Pro.C A-30(48827)
・Battery Tahmazo LP-3S1P1000RE (48863)
・Connector PILOT Gold connector 4.0BL (33234)
・PILOT Extension cord ST 200mm x4 (47499)
, charger Tahmazo lipo charger (48451),
instant adhesive OK Bond HW (43010), FX (43451)
, epoxy adhesive (30 minute curing type)
, PILOT sanding block (25042) )
・Sandpaper
・Soldering tools (soldering iron, solder with resin, etc.)
・Other general tools (cutter knife, screwdriver, etc.)

*Other items must be prepared to complete and fly this aircraft.

Features:

It exhibits excellent turning performance by retreating at the wing tips.

Large flaps with independent left and right flaps are effective for spot landings. In addition, the forward hinge line provides excellent stability.

The V tail angle was determined as a result of repeated tests to be 98 degrees.

The servo, motor, battery, ESC and receiver fit inside the canopy.

Even after assembly, the main wing can be divided into three parts for convenient transportation.

Secure it with tape. When flying, the wing tip panels are joined to the center wing using carbon kanzashi.

Aircraft Specifications:

・ Overall length Length: 1320mm
・ Overall width Wing Span: 2508mm
・ Main wing area: 43.1dm2
・Total weight Weight: 960-1060g
・Motor: Tahmazo ER-221912d ( 48855 )
・ RC mechanism Radio: AL, FL, RD, EV , ESC
・ After completion, the main wing can be divided into three parts.
・Difficulty of flight: For intermediate/advanced users
・Completed state of the aircraft: Film pasted
・ Mountable power unit: Electric motor
