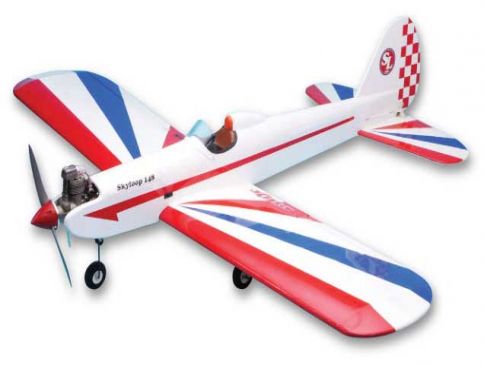

PILOT Skyloop 148

The best-selling sports aircraft "Commander 148" and low-wing sports aircraft that retain a classic image can be said to be the origin of radio-controlled aircraft.

"Skyloop 148" has added a retro taste to the commander such as the open nose, wing tip aileron, and fabric covering style fuselage.

The two-split main wing with carbon pipe Kanzashi, the adoption of the screw-type horizontal stabilizer and the bonded vertical stabilizer eliminate the need for assembly and bonding while checking the troublesome alignment. The semi-symmetric airfoil and rectangular airfoil provide outstanding stability.

Completed balsa rib assembly film pasting This is a combination of the main tail and the wooden film pasting fuselage. The simple structure makes mechanical stacking and maintenance easy. You can easily take off and land with the 3-wheel type legs. Since the upper surface of the fuselage at the rear of the engine is a hatch, it can be easily electrified.

It is also possible to install an optional cowling.

In the Box

・ Completed fuselage with film
・ Completed main wing ・ tail
・ Canopy
・ 320cc fuel tank
・ 3 55mm sponge tires
・ Nose gear, main gear
・ 57mm AB spinner
・ Linkage parts set
・ Color sticker
・ Japanese assembly manual

* This product is a film-pasted ARF machine. To complete it, it is necessary to join the main wings and load the engine and mechanism.
* Covering film causes tarmi and wrinkles due to its material. In such cases, heat can be applied with a model iron to shrink the film and remove it.

Aircraft Specifications

・ Overall Length: 1250mm
・ Overall width Wing Span: 1480mm
・ Main wing area: 40.5dm2
・ Total Weight: 2000-2200g
・ Motor: Tahmazo ER-352077dBM (48766)
・ Engine: 2C-40-45, 4C- 40-50 class
・ RC mechanical Radio: AL (2), RD, EV, TH or ESC
・ Difficulty of flight: For intermediate users
・ Completed state of the aircraft: Completed film pasting
・ Power unit that can be installed: Electric motor / glow engine
