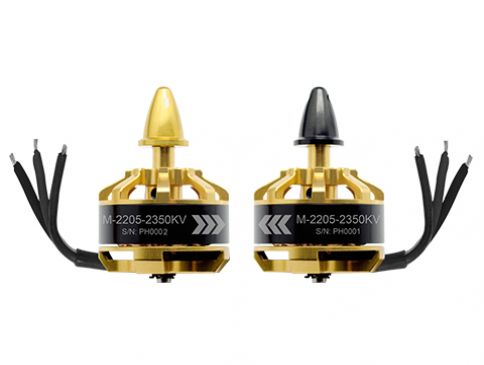

SCORPION M-2205-2350Kv Race Quad 250
SGD 70.50
SCORPION M-2205-2350Kv Race Quad 250
Specifications
| Stator Diameter | 22.0 mm (0.87 in) |
| Stator Thickness | 5.0 mm (0.197 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 22 Turn Delta |
| Motor Wire | 4-Strand 0.21mm |
| Motor Kv | 2350 RPM / Volt |
| No-Load Current (Io/10V) | 0.88 Amps |
| Motor Resistance (Rm) | 0.775 Ohms |
| Max Continuous Current | 25 Amps |
| Max Continuous Power | 370 Watts |
| Weight | 30.6 Grams (1.08 oz) |
| Outside Diameter | 27.9 mm (1.09 in) |
| Shaft Diameter | 2.98 mm (0.12 in) |
| Body Length | 19.60 mm (0.84 in) |
| Output Shaft Length | 12 mm (0.47 in) |
| Max Lipo Cell | 4s |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz |
Included in the Box
M3 *8
M-2205-2350kv motor *2
Bullet nuts *2
| Weight: | 0.1600 |
