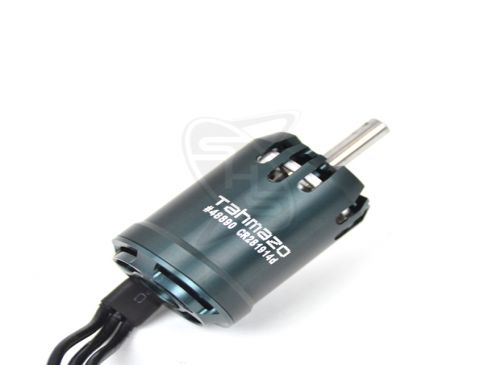

TAHMAZO 48890 Outrunner Brushless Motor CR-281914d

It looks like an inner rotor type with a rotor inside, but in fact, this is an outer rotor type brushless motor, and the outermost case does not rotate.

The lead wire comes out from the back while being attached to the aircraft with the front case.

Since the outer rotor does not rotate in the fuselage of an airplane or glider, you do not have to worry about the wiring and other mechanical arrangements.

Ideal for F5J gliders which weighs less than 1.8kg.

Specifications:
Type: 14 poles Covered outer rotor type Brushless motor

Applicable voltage: 8.4 to 12.6V (equivalent to Lipo 2 cells to 3 cells)

KV: 1,480rpm / V

Watt class: 480W　

Dimensions: Diameter 28.1mm x Length 42.7 mm ( Main unit only)　

Shaft diameter: 5.0 mm

Weight: 83 g

Max current: 38A (30")

Recommended props (3-cells lipo): 10x5-11x6"
