V-PRO Extract 20cc 17079

V-PRO Extract 20cc 17079

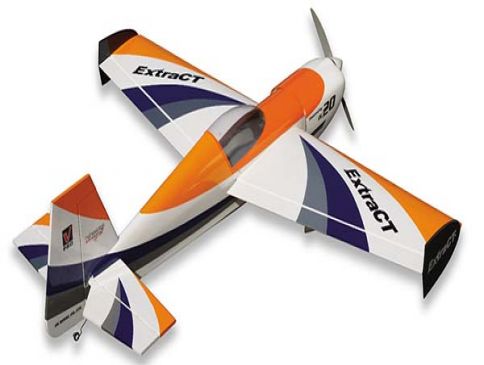

The aircraft "Extract", which was developed for entry into the gasoline engine aircraft, was designed not as a complete scale aircraft, but as a semi-scale sports aircraft in the image of the actual Extra 260. After repeating test flights over a long period of time and fine-tuning everything from the airfoil shape, tail area, mounting angle, dihedral angle, fuselage and main wing rigidity, we move to production.

You will enjoy the performance that responds directly to the pilot's maneuvers, which cannot be obtained by simply scaling down the actual aircraft.

The main wing is not the split main wing that is advantageous in terms of weight and strength, which is the mainstream of gasoline engine aircraft, but a common single wing.

Package Contents

・Main wing with balsa veneer film finish

・Tail wing with balsa film finish

・Body with balsa veneer film finish

・Glass cowling

・75mm AB spinner

・Plastic canopy

・Fuel tank (for gasoline)

Engine mount (not pictured), linkage rod set, main gear , tail gear , sponge tire , control horn , color sticker , Japanese assembly manual

*This product is a completed ARF machine with film attached. In order to complete it, it is necessary to work on things such as joining the main wings and loading the engine and mechanics.
*Covering film causes sag and wrinkles due to its material. In such cases, you can apply heat with a model iron to shrink the film and remove it

AIRCRAFT SPECIFICATIONS:

・ Length: 1550mm

・ Wing Span: 1610mm

・ Wing Area: 53.4dm2

・Weight: 3800-4000g

・ Engine: DLE-20 or glow engine 4C 90-120 class

・ RC mechanism Radio: AL (2 ), RD, EV, TH

・Difficulty of flight: For intermediate/advanced

・Completion state of the airframe: Finished with film attached

・Power units that can be installed: Gasoline engine/Glow engine
